鲁尔量规，ISO80369-7量规

Technical parameters

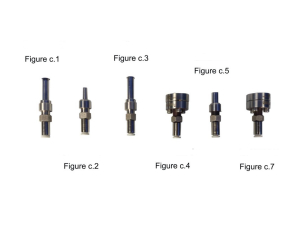

●According to standards:ISO80369-7-Figure C.1

●Material: 440C, stainless steel. Rockwell Hardness of C58 to C60

●Surface roughness value, Ra, not exceeding 0,8 μm on critical surfaces.

●Hexagon：10mm

●Pipe diameter:φ4mm

Technical parameters

●According to standards:ISO80369-7-figureC.2

●Material: 440C, stainless steel. Rockwell Hardness of C58 to C60

●Surface roughness value, Ra, not exceeding 0,8 μm on critical surfaces.

Technical parameters

●Male reference luer lock connector for testing female luer connectorsfor leakage, separation from unscrewing, stress cracking and non-interconnectable characteristics

●Model:ISO80369-7-Figure C.4

●According to standards:ISO80369-7-Figure C.4

●Material: 440C, stainless steel. Rockwell Hardness of C58 to C60

●Surface roughness value, Ra, not exceeding 0,8 μm on critical surfaces.

●Hexagon：10mm

●Pipe diameter:φ4mm

Technical parameters

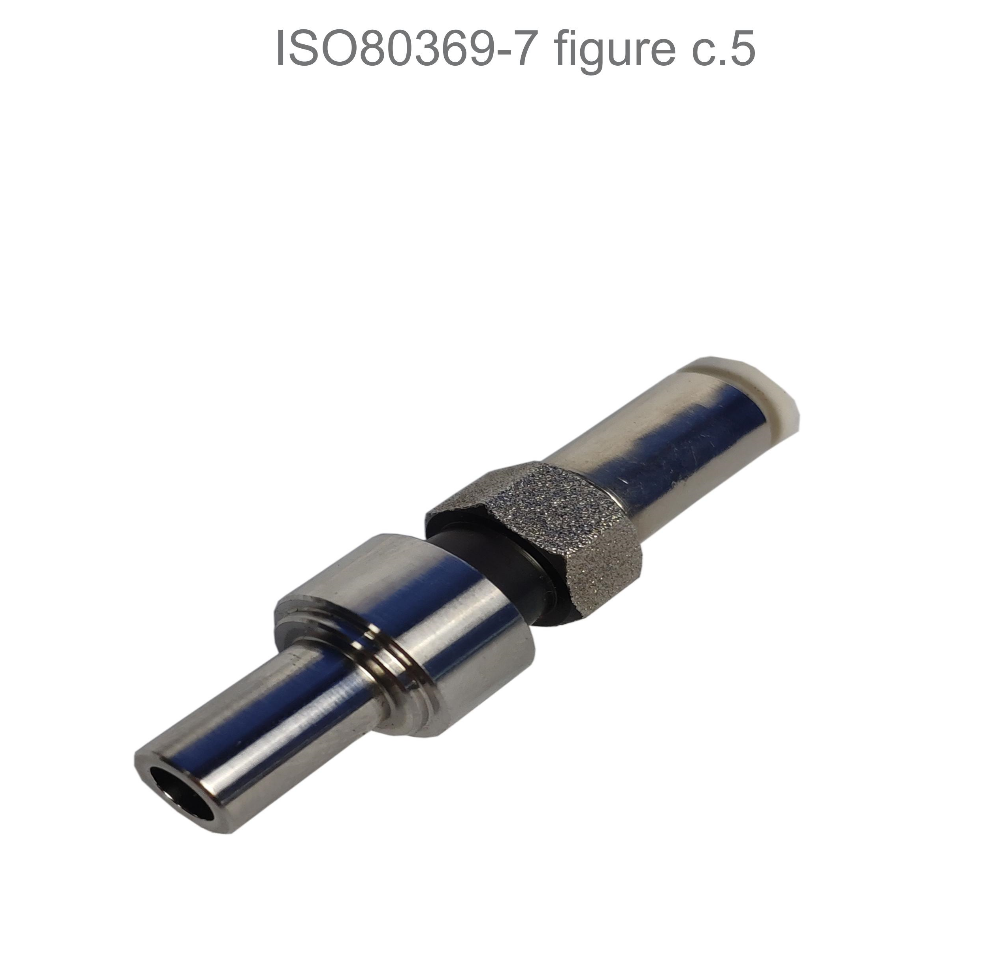

●Female reference luer slip connector for testing male luer connectors for

leakage, separation from axial load, stress cracking and non-interconnectable characteristics

●Model:ISO80369-7-Figure C.5

●According to standards:ISO80369-7-Figure C.5

●Material: 440C, stainless steel. Rockwell Hardness of C58 to C60

●Surface roughness value, Ra, not exceeding 0,8 μm on critical surfaces.

●Hexagon：10mm

●Pipe diameter:φ4mm

Technical parameters

●Model:ISO80369-7-Figure C.6

●According to standards:ISO80369-7-Figure C.6

●Material: 440C, stainless steel. Rockwell Hardness of C58 to C60

●Surface roughness value, Ra, not exceeding 0,8 μm on critical surfaces.

●Hexagon：10mm

●Pipe diameter:φ4mm
